Product Description

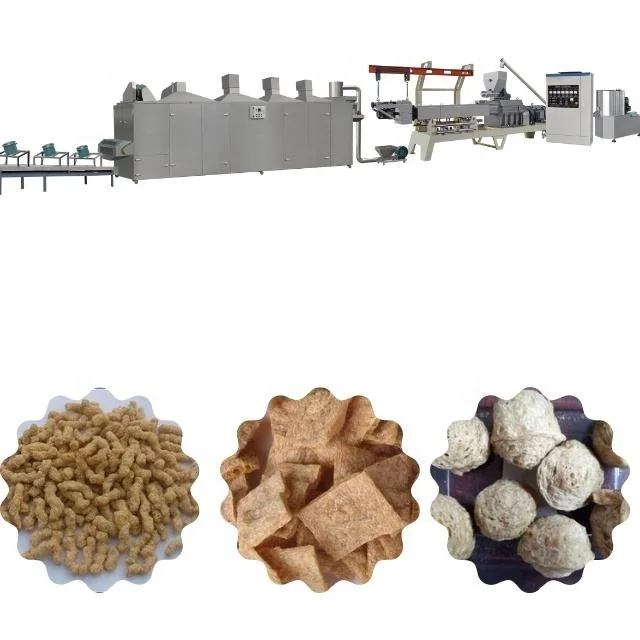

Dry Protein Drawing Equipment – Intelligent Puffing Machine for Cake Protein & Vegetarian Meat
This production line uses low-temperature soybean meal and peanut meal as the main raw materials. After grinding. stirring. tempering. high temperature. high pressure. and high shear. the spherical protein molecules are opened into chains and reorganized to form a fleshy fiber structure. Such as lean and chewy new foods. The protein product has high nutritional value. has the state and taste of meat. does not contain cholesterol and animal fat. and has the characteristics of oil absorption. water absorption and taste absorption. Protein is widely used in various industries such as ham. sausage. canned food. fast food and quick-frozen food.
The investment for this line is only one tenth of that lager size equipment. especially suitable to small-sized or self owned enterprise.
All the machinery is made of stainless steel. Using the advanced technology for nutrient and instant foodstuff complete lines. the plant is innovative with advanced structure. excellent performance and reliable quality that provide an ideal choice for the investor in foodstuff industry.
All the machinery is made of stainless steel. Using the advanced technology for nutrient and instant foodstuff complete lines. the plant is innovative with advanced structure. excellent performance and reliable quality that provide an ideal choice for the investor in foodstuff industry.
Process of soybean tissue protein production line:
Raw material preparation→mixing→conveying→extrusion→conveying→
→drying→cooling→packing
These main equipments are introduced as follows:
Model | Installed power | Real power | Output | Dimension |
MT65 | 85KW | 65KW | 150-200kg/h | 18000*1300*2300mm |
MT70 | 120KW | 90KW | 200-300kg/h | 20000*1500*2400mm |
MT85 | 195KW | 165KW | 600-800kg/h | 24000*3500*4300mm |
MACHINE DETAILS:
High-temperature Roaster
Output: 300-400kg/hr
Effective length of belt: 3.5m
Belt motor power: 0.55kw
Far infrared heater power:
3.9kw x 24
Gas consumption: 6.8m3
Dimension:
4500 x 1500 x 1600mm
Effective length of belt: 3.5m
Belt motor power: 0.55kw
Far infrared heater power:
3.9kw x 24
Gas consumption: 6.8m3
Dimension:
4500 x 1500 x 1600mm
Double Screw Extruder
Output: 200-250kg/hr
Installed power: 45.87kw
Actual power: 30-35kw
Main motor power: 30kw
Dimension:
2800 x 830 x 1875mm
Installed power: 45.87kw
Actual power: 30-35kw
Main motor power: 30kw
Dimension:
2800 x 830 x 1875mm
Powder Mixer
Output: 300-600kg/hr
Rotary speed: 385rpm
Mixing time: 10min per time
Tank volume:150kg
Power: 4kw
Dimension:
1000 x 630 x 1100mm
Rotary speed: 385rpm
Mixing time: 10min per time
Tank volume:150kg
Power: 4kw
Dimension:
1000 x 630 x 1100mm
Cooling Machine
Temperature??0??260??
Capacity??200??300?K/h
Capacity??200??300?K/h
Products Show
Related Products:
Our team:
Our company??
Jinan Meiteng Machinery & Equipment Co.. Ltd. is located in Jinan. the capital of Shandong Province. The company is an enterprise specializing in double-screw and single-screw food puffing machinery. The company is mainly engaged in research and development. production and sales of various puffing machinery and complete sets of equipment. Our company has a team of experts who have worked in the industry for more than ten years. We strive to continuously explore extrusion technology research and food technology to help customers produce popular foods.
Our products are sold very well throughout China and are also introduced to Southeast Asia. East Europe. Africa and other regions. Our market share is increasing each year.
Customer
Feedback
Certifications
Packing & Delivery
About packing fully automatic pet food machine making/pet dog food making machine??
We can pack according to customer requirements.
Our Services
1. Pre-sale services: Act as a good adviser and assistant of clients. enable them to get rich and generous returns on their investments.
(1)Select equipment model;
(2)According to the special requirements of customers. free project planning and design services are provided;
(3)Train technical personnel for clients.
2. Services during the sale: Respect clients. devote ourselves to improving the total value of clients.
(1)Pre-check and accept products ahead of delivery;
(2)Help clients to draft solving plans.
3.After-sale services: Provide considerate services to maximize customers’ benefits.
(1)Assist clients to prepare for the first construction scheme;
(2)Install and debug the equipment;
(3)Train the first-line operators;
(4)Examine the equipment;
(5)Take initiative to eliminate the troubles rapidly;
(6)Provide manuals for installation. operation and maintenance
(7)Provide equipment CAD drawings;
(8)Provide technical exchanging.
(9)1 year complete warranty.
(1)Select equipment model;
(2)According to the special requirements of customers. free project planning and design services are provided;
(3)Train technical personnel for clients.
2. Services during the sale: Respect clients. devote ourselves to improving the total value of clients.
(1)Pre-check and accept products ahead of delivery;
(2)Help clients to draft solving plans.
3.After-sale services: Provide considerate services to maximize customers’ benefits.
(1)Assist clients to prepare for the first construction scheme;
(2)Install and debug the equipment;
(3)Train the first-line operators;
(4)Examine the equipment;
(5)Take initiative to eliminate the troubles rapidly;
(6)Provide manuals for installation. operation and maintenance
(7)Provide equipment CAD drawings;
(8)Provide technical exchanging.
(9)1 year complete warranty.
FAQ
1. Are you a manufaturer or a trading company?
We are a professional manufaturer with trading department.
2. Could we visit your company to check the machine?
Of course! Highly appreciated your visit to our company.
3. How about your noodle machine quality?
All main parts of the machine are made of 304 stainless steel. We will be responsible for site installation and commissioning. Ifthere is anything wrong with the machine. our engineers can be on site to repair it within two days. Even if the machine doesn't break down. We also pay a return visit twice a year by video phone.
Our payment terms is 30% T/T as down payment. 70% by irrevocable L/C at sight before delivering.
5. What’s your Guarantee?
We provide 1 year complete Guarantee and life-time maintenance service.
6. How about the installation?
We will dispatch our engineers to your factory to guide you installation and commissioning work and training your operator.
7. Why Choose us as a reliable Processing line supplier?
(1) Advantage technology; (2) High quality material; (3) Tight quality control; (4) Accurate maching; (5) 7 – 24 hours service
